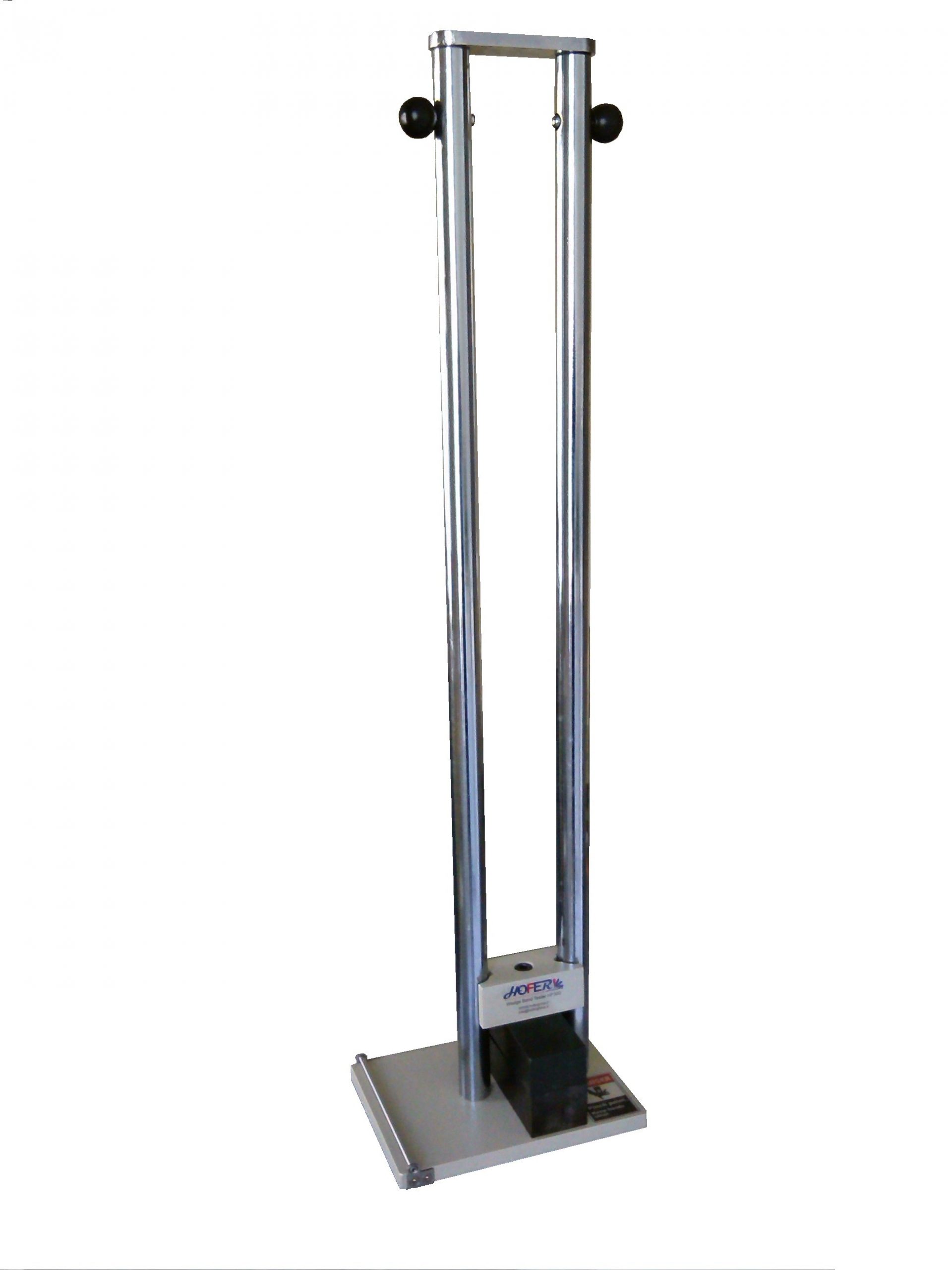

The Bend and Impact Tester

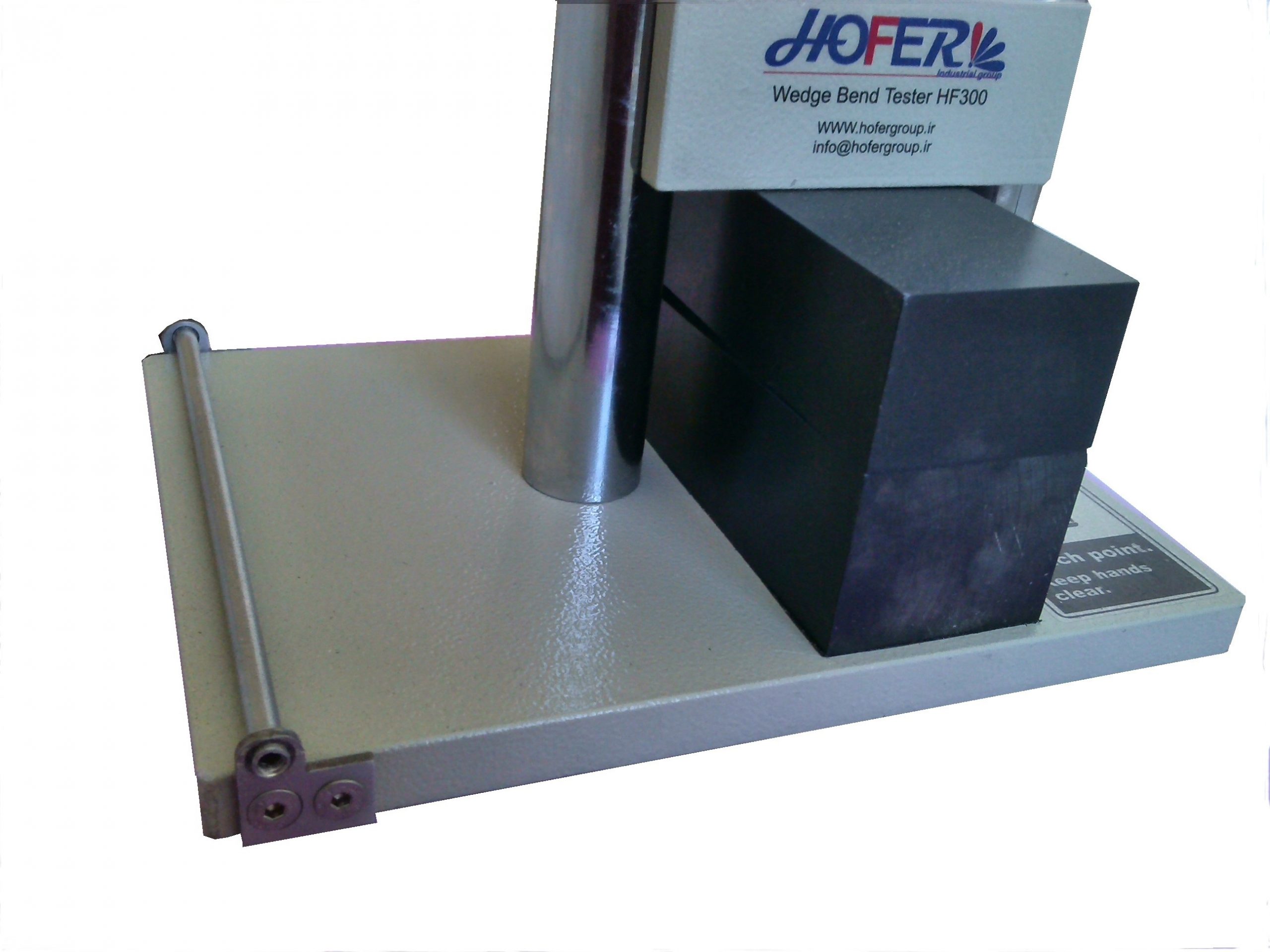

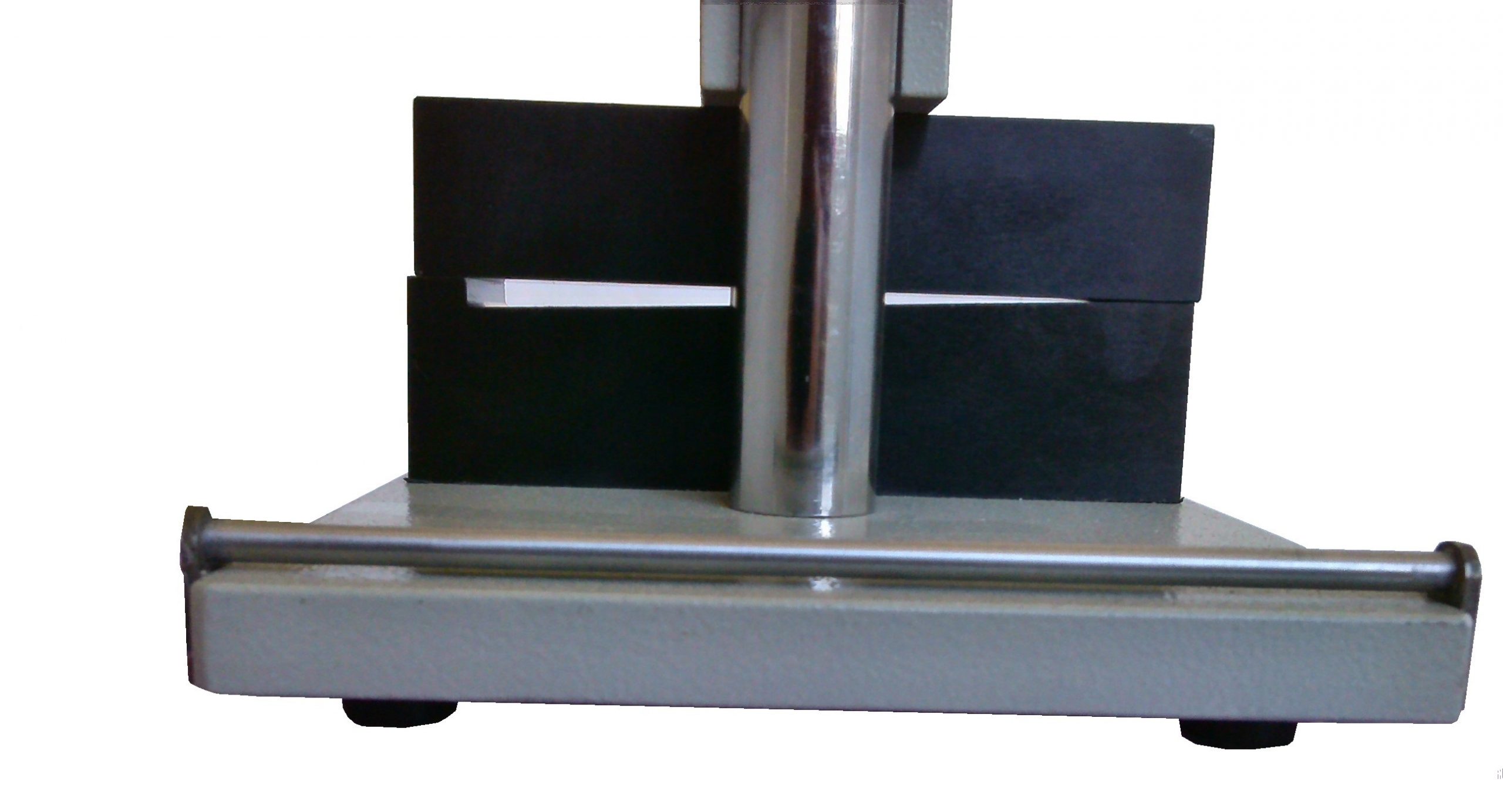

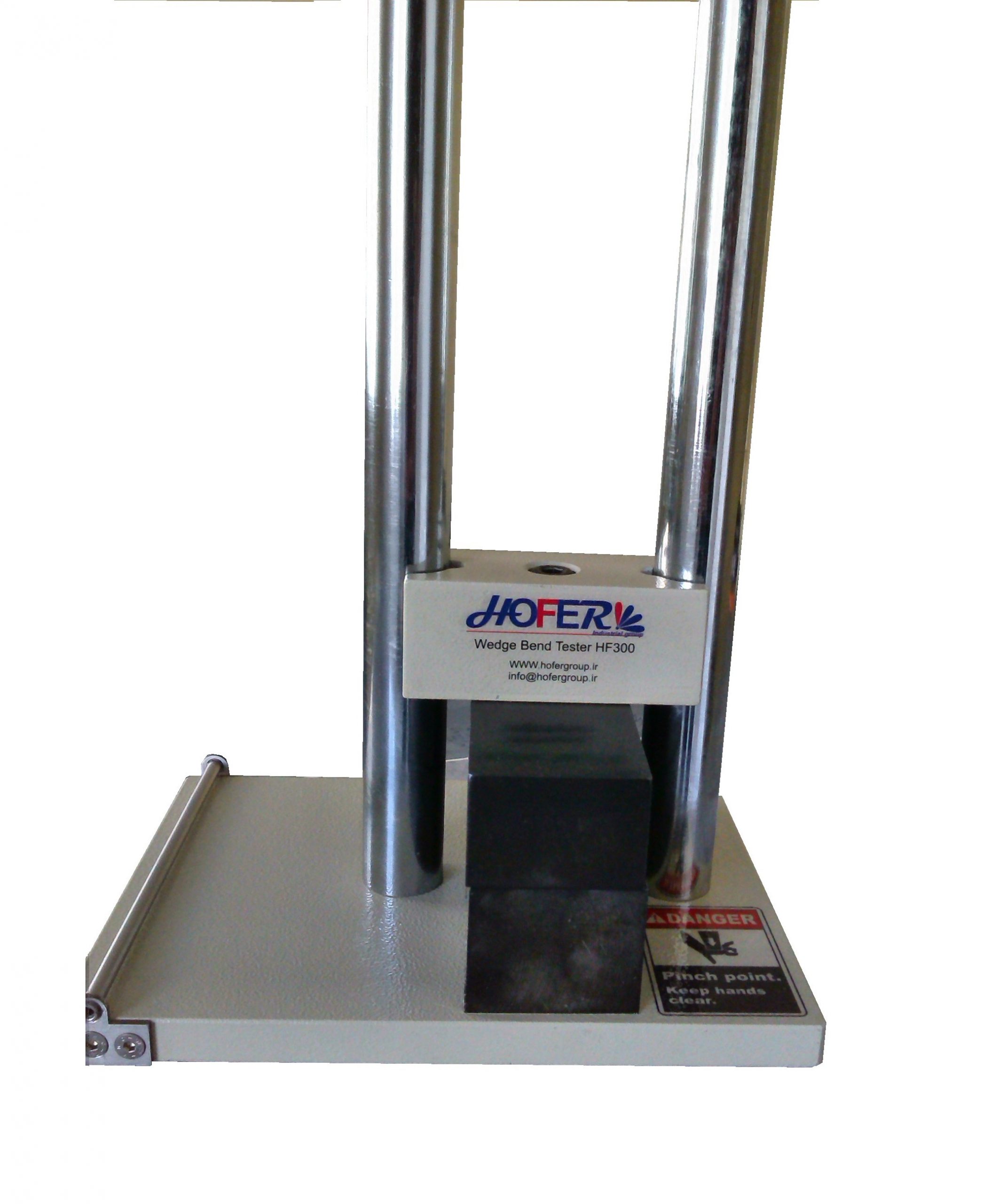

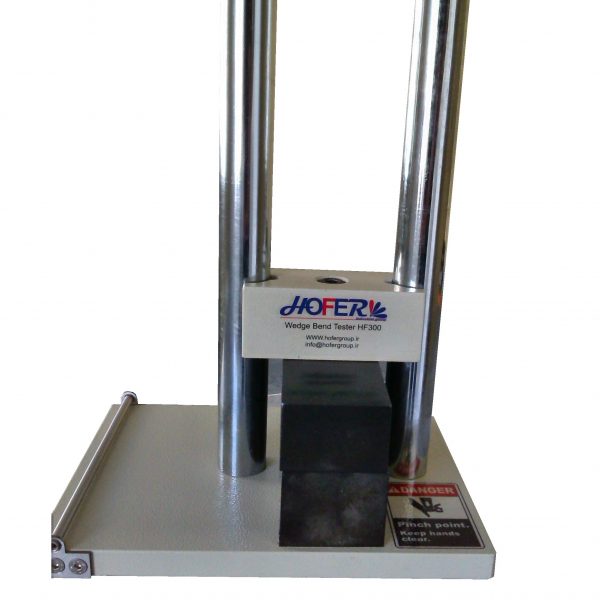

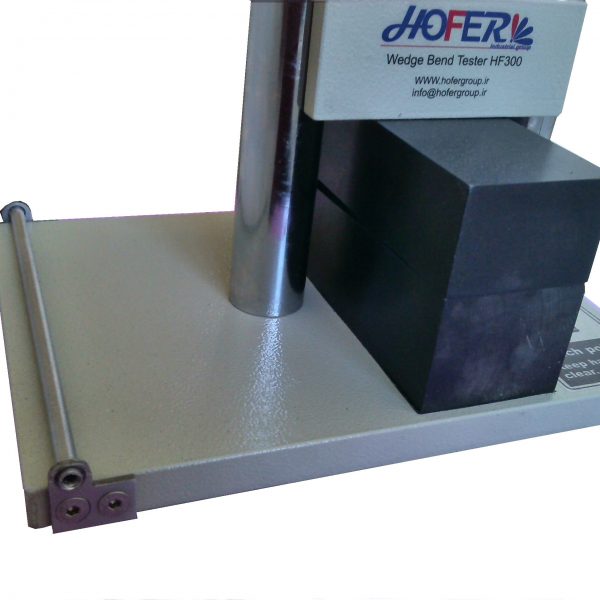

The HOFER Bend and Impact Tester, consists of 2 vertical tubes which guide a 2300 +/- 100 g impact tool with a 650 mm +/- 5 mm drop, a special-design-anvil for placing the test panel.
Technical specifications:
Panel size: 50 x 140 mm
Thickness: 0.10 – 0.35 mm
Hammer weight: 2300 ±100 g
Drop height: 650 ±5 mm
Including bending mandrel (5 mm diameter)
Materials: Anodized aluminum, Stainless steel, Powder coated steel
