POP & TEAR TESTER

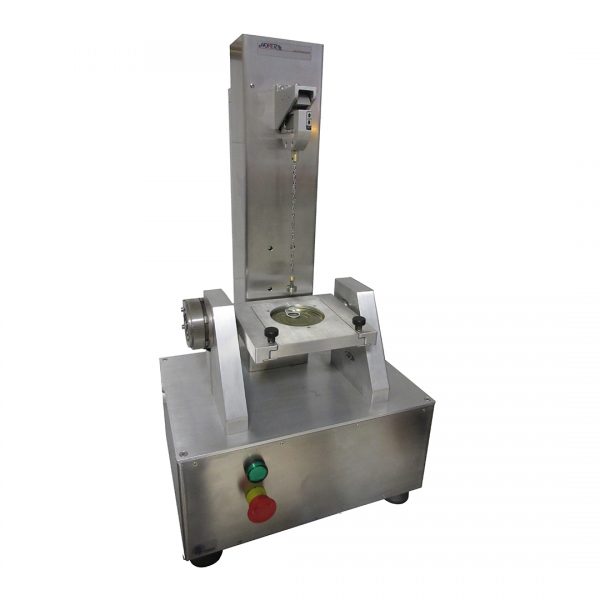

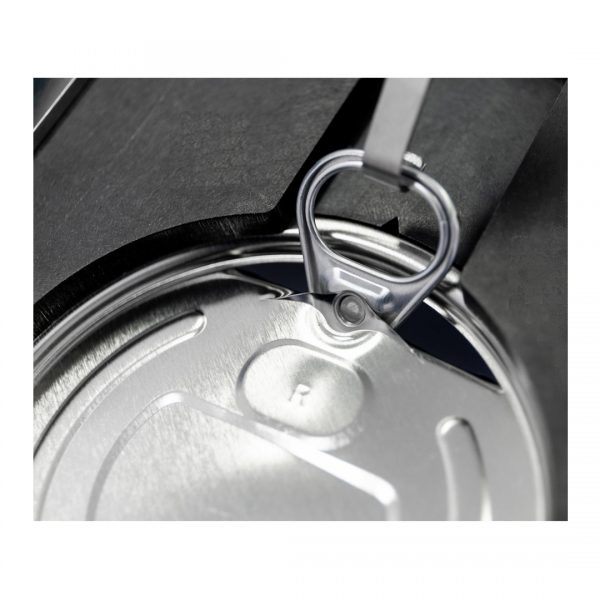

The HOFER Pop & Tear Tester was developed for testing different kinds of easy open ends.
Technical specifications:
Automatic Measurement
Measurement Units: N, lbs
Languages: English, Persian
End Diameters: Max 99 mm (Bigger by order)
Aluminium or steel easy open ends
Maximum load: 200 N
Measures: Pop, Tear & Tab strength
Records Force Vs time or Force Vs angle
Ability to display force-to-time, and force-to-angle graphs
Display pop force and Pop angle
Display tear on and tear off force
Measurement accuracy: 0.01 N
Angle accuracy: 3.1 degree (33 minute)
Cycle time: About 10 seconds
Includes: Operation manual, Software CD
Power Supply: 240V – 50/60Hz
Allows saving of results table and corresponding graphs.
OS supported: 7, 8 and 10
Includes dedicated database and reporting of recorded data
Ability to save data in different formats (image, excel, text, metafiles, etc.)
Slotted Mass for calibration
Includes five defined methods for measurement and one adjustable method
Print/save charts
Ability to backup and restore data and raw database
Connect via USB2 and USB3
Materials: Anodized aluminum, Stainless steel, Powder coated steel
