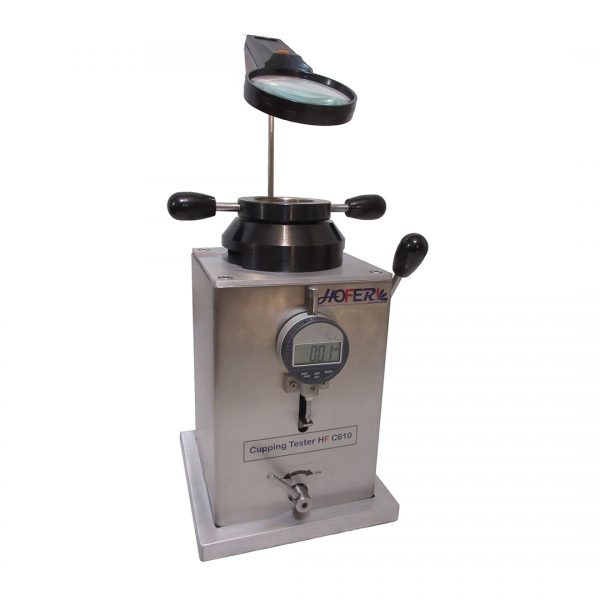

Manual Cupping Tester

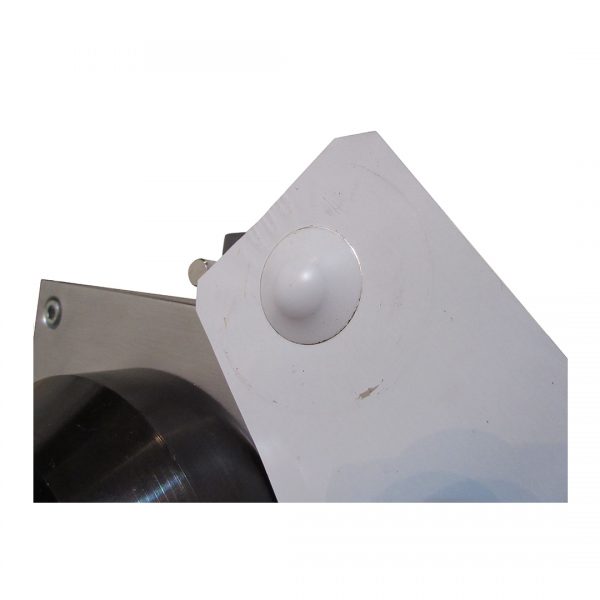

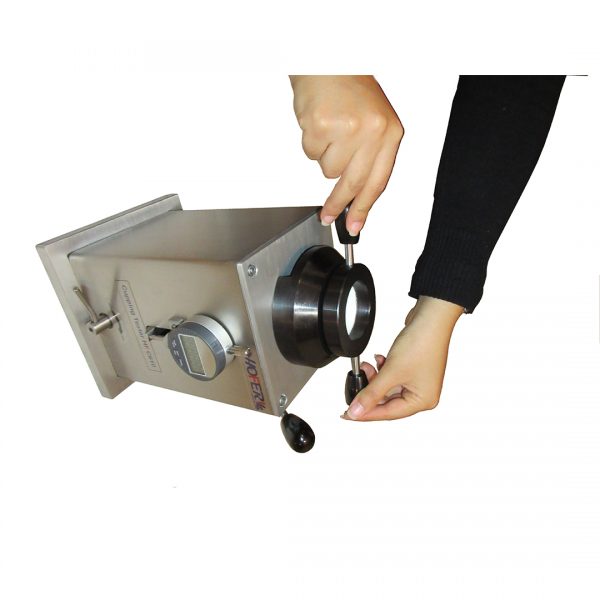

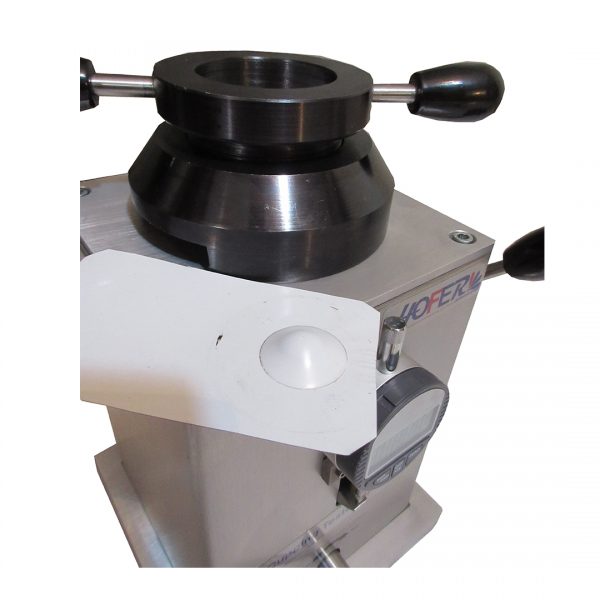

The HOFER Manual Cupping Tester is a robust and simple-to-use instrument for assessing the cupping capability of coatings applied onto metal sheets up to 1.2 mm thick.
Technical specifications:
Max. sample thickness: 1.2 mm (steel or aluminum)
Punch diameter: 20 mm /hardened steel
Die diameter: 27 mm /hardened steel
Gauge resolution: 0,01 mm
Cupping Range/Stroke: 12 mm
Digital gauge
Power supply: Battery, SR-44, approx.5.000 h
gauge holder
zero setting sheet
illuminated 10x magnifying glass with clamp
Total weight: 16 kg.
Materials: Anodized aluminum, Stainless steel, Powder coated steel
