ISO Stanard Dip Cups

ISO Standard/Dip Cups

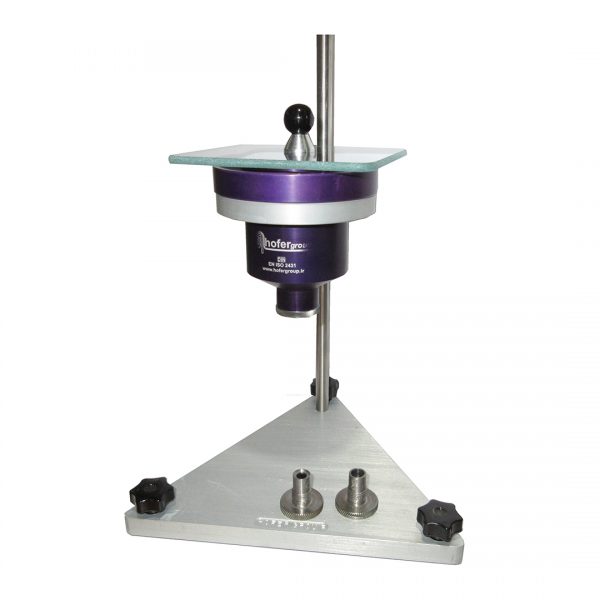

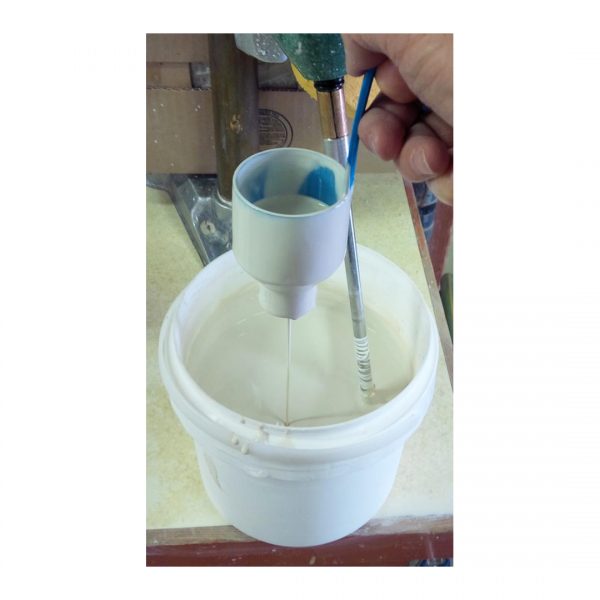

The HOFER ISO Standard/Dip Cups is very easy to use to perform checks on site or during the manufacturing process. It is ideal for measuring the consistency of paints, varnishes and similar products.
Technical specifications:
Materials: Cup: Anodized aluminum
Orifice: Stainless steel
Cup Dimensions: 100 mm
Orifice diameter: 3 mm, 4 mm, 6 mm, or 8 mm
Overflow gutter for preventing faulty measurements
Factory / manufacturer calibration certificate
According to ASTM D 5125, ISO 2431

ISO/ASTM FLOW CUP
Flow Cups to BS EN ISO 2431, ASTM D5125
Flow Cups to BS EN ISO 2431, ASTM D5125
Flow Cups to BS EN ISO 2431, ASTM D5125
Flow Cups to BS EN ISO 2431, ASTM D5125
Flow Cups to BS EN ISO 2431, ASTM D5125
The orifices are manufactured from stainless steel. Orifice Diameter
3mm (0.12”)
4mm (0.16”)
5mm (0.20”)
6mm (0.24”)
8mm (0.31”) Viscosity Range
7 – 42cSt
35 – 135cSt
91 – 325cSt
188 – 684cSt
600 – 2000cSt
