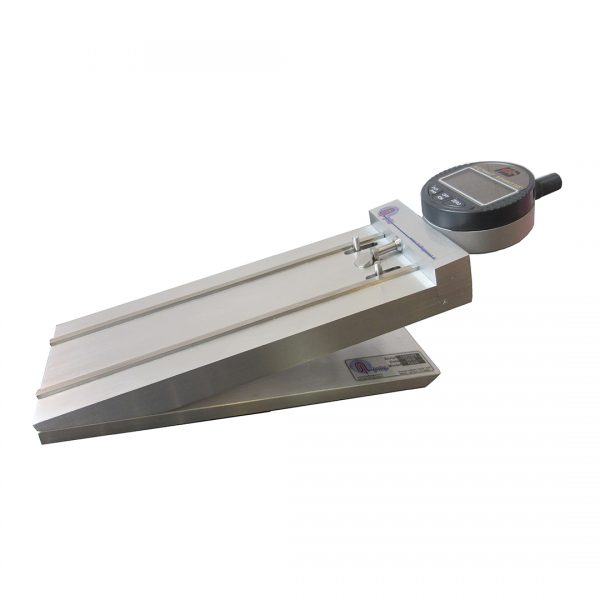

Flange Width Gauge (Digital)

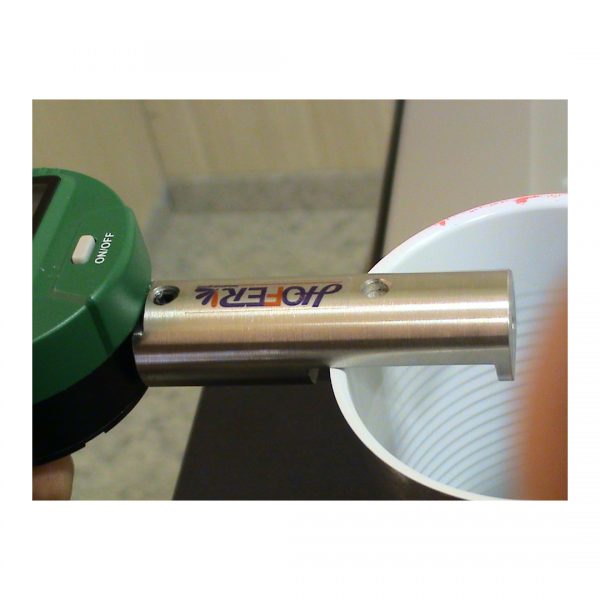

The HOFER Flange Width Gauge is used to measure the flange width of empty cans.
Easy-operation design offers a fast and accurate measurement of flange width.
In order to avoid the manual recording error, the gauge can be connected to SPC system or “HOFER Seam Scanner” software with HOFER-DTB Data Transporting Box and cable. So that, the data can be transferred to SPC system or “HOFER Seam Scanner” software through HOFER-DTB and cable.
Technical specifications:
Digital Indicator
Measuring range: 0-5 mm
Resolution: 0.01 mm
Accuracy: ±0.01 mm
Sample range: 3-pcs & 2-pcs cans
Can diameter: 52 – 153 mm (bigger by order)
Power supply: Battery, SR-44, approx.5.000 h
weight: 1 kg
