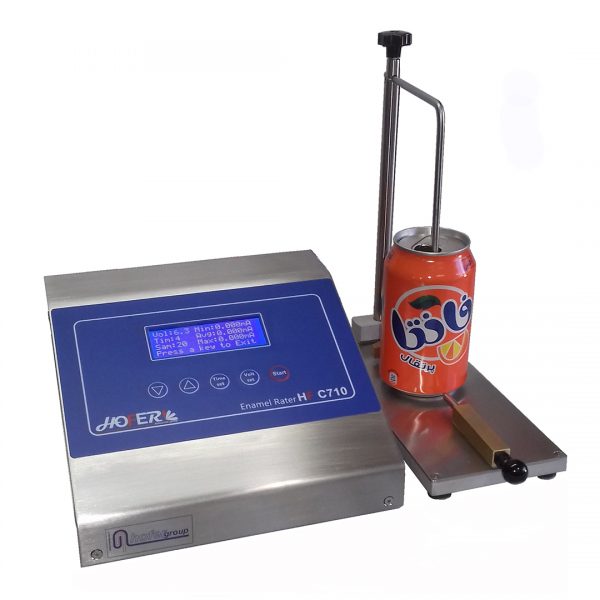

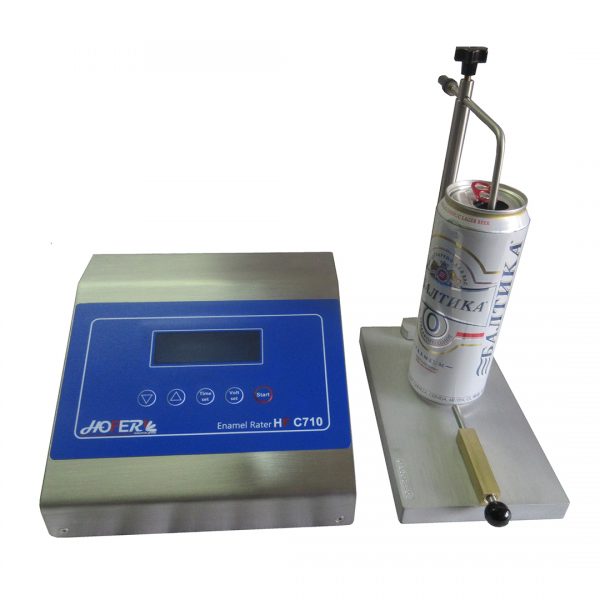

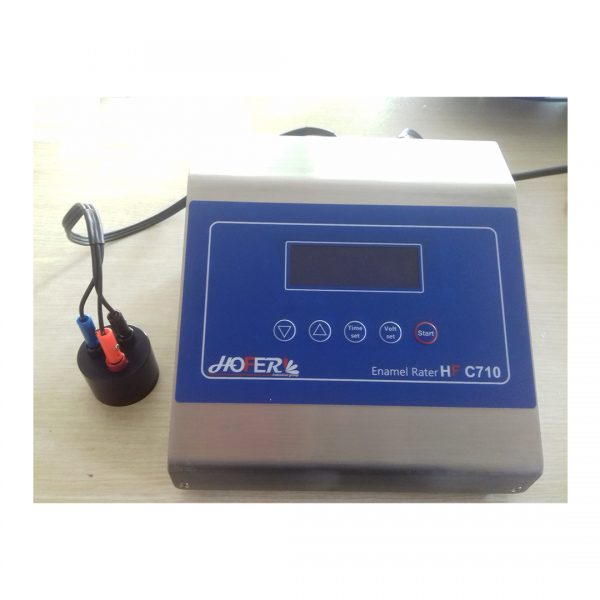

Digital Enamel Rater
The Digital HOFER Enamel Rater offers a fast and accurate method to measure the integrality of internal coating of containers. A measuring will be started automatically when the electrical probe is inserted and contacts the solution inside the container.
Technical specifications:

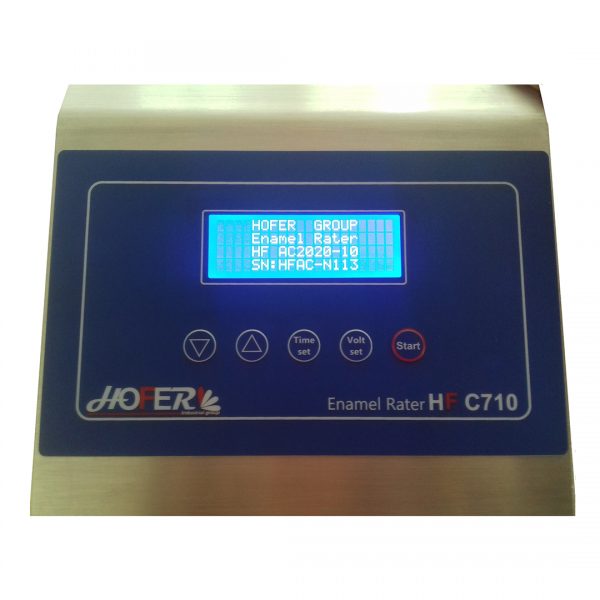

Blue Monochrome LCD Display
Auto-Calibration System
Can Contact Sensor: Good electrical contact to can must be established to start test
Display current flow (Max, Min and Average) after test
Sample type: 2- and 3-piece cans, aerosol-cans
Sample capacity: 52 – 99 mm dia. can
Measuring range: 0 to 200 mA
Resolution: 0.005 mA
Can holder stand for 50 – 99 mm dia. can
Timer: Adjustable between 0 – 99 second (Resolution: 1 s)
Voltage: Adjustable between 2.0 – 10.0 V (Resolution: 0.1 V)
Power Supply: 240V – 50/60Hz
Materials: Stainless steel
