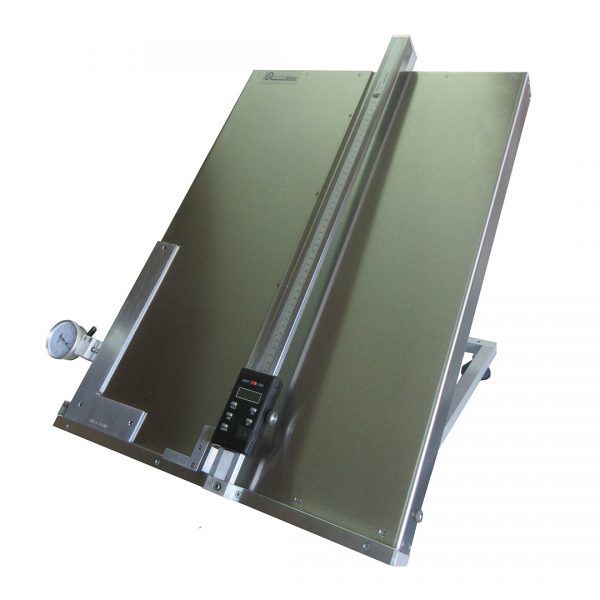

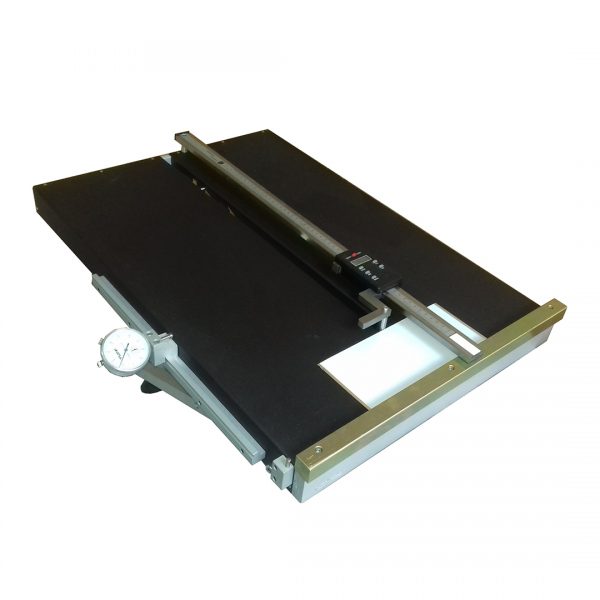

Digital Body Blank Gauge
The HOFER Digital Body Blank Gauge is made for the quality control of can body blanks.
Technical specifications:

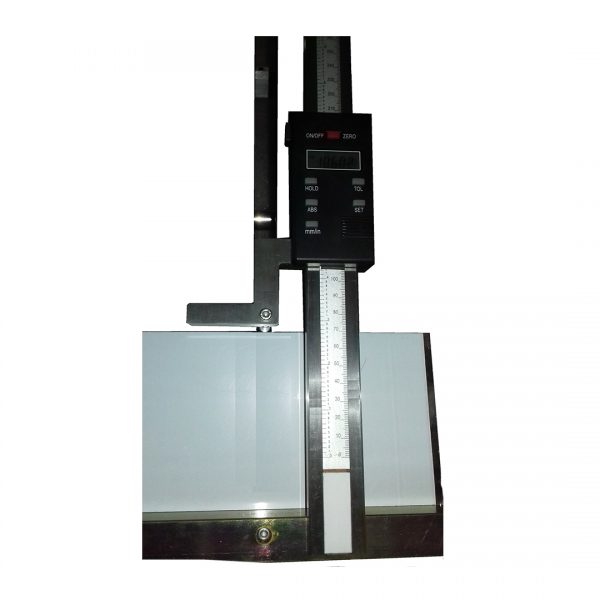

precision measurement of length and width
Measurement system: Digital Caliper
Resolution: 0.01 mm
Accuracy: 0.01 mm
Dimension: 500 × 680 mm
Measure range: 0 – 550 mm (Bigger by order)
Adjustable angles: horizon, 30 and 45 degrees
precision measurement of squareness
Angle measurement system: Analog Indicator
Adjustable for all dimensions
Resolution: 0.01 mm
Accuracy: 0.01 mm
Approx. Weight: 15 kg
Materials: Anodized aluminum, Powdercoated steel
